Everything About ClassNotFoundException Vs NoClassDefFoundError

We know Java is an Object Oriented Programming Language and almost everything is an object in Java and in order to create an object we need a class.

While executing our program whenever JVM find a class, First JVM will try to load that class into memory if it has not done it already.

For Example, If JVM is executing below the line of code, before creating the object of Employee class JVM will load this class into memory using a ClassLoader.

Employee emp = new Employee();

In above example, JVM will load the Employee class because it is present in the execution path and JVM want to create an object of this class.

But we can also ask JVM to just load a class through its string name using Class.forName() or ClassLoader.findSystemClass() or ClassLoader.loadClass() methods. For Example below the line of code will only load the Employee class into memory and do nothing else.

Class.forName("Employee");

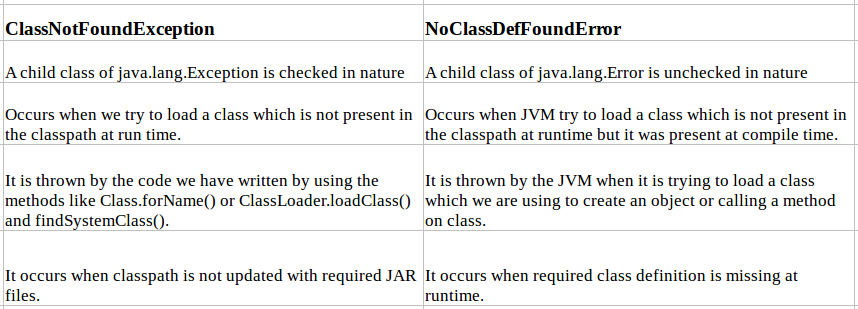

Both ClassNotFoundException and NoClassDefFoundError occur when a particular class is not found at run time but under different scenarios. And here in this article, we going to study these different scenarios.

ClassNotFoundException

Is a checked exception that occurs when we tell JVM to load a class by its string name using Class.forName() or ClassLoader.findSystemClass() or ClassLoader.loadClass() methods and mentioned class is not found in the classpath.

Most of the time, this exception occurs when you try to run an application without updating the classpath with required JAR files. For Example, You may have seen this exception when doing the JDBC code to connect to your database i.e.MySQL but your classpath does not have JAR for it.

If we compile below example, the compiler will produce two class files Test.class and Person.class. And Now if we execute the program it will successfully print Hello. But if we delete Person.class file and again try to execute the program we will receive ClassNotFoundException.

public class Test {
    public static void main(String[] args) throws Exception {

        // ClassNotFoundException Example
        // Provide any class name to Class.forName() which does not exist
        // Or compile Test.java and then manually delete Person.class file so Person class will become unavailable
        // Run the program using java Test

        Class clazz = Class.forName("Person");
        Person person = (Person) clazz.newInstance();
        person.saySomething();
    }
}

class Person {
    void saySomething() {
        System.out.println("Hello");
    }
}

NoClassDefFoundError

Is a subtype of java.lang.Error and Error class indicates an abnormal behavior which really should not happen with an application but and application developers should not try to catch it, it is there for JVM use only.

NoClassDefFoundError occurs when JVM tries to load a particular class that is the part of your code execution (as part of a normal method call or as part of creating an instance using the new keyword) and that class is not present in your classpath but was present at compile time because in order to execute your program you need to compile it and if you are trying use a class which is not present compiler will raise compilation error.

Similar to above example if we try to compile below program, we will get two class files Test.class and Employee.class. A and on execution it will print Hello.

public class Test {
    public static void main(String[] args) throws Exception {

        // NoClassDefFoundError Example
        // Do javac on Test.java,
        // Program will compile successfully because Empoyee class exits
        // Manually delete Employee.class file
        // Run the program using java Test
        Employee emp = new Employee();
        emp.saySomething();

    }
}

class Employee {
    void saySomething() {
        System.out.println("Hello");
    }
}

But if we delete Employee.class and try to execute the program we will get NoClassDefFoundError.

Exception in thread "main" java.lang.NoClassDefFoundError: Employee
 at Test.main(Test.java:9)
Caused by: java.lang.ClassNotFoundException: Employee
 at java.net.URLClassLoader.findClass(URLClassLoader.java:381)
 at java.lang.ClassLoader.loadClass(ClassLoader.java:424)
 at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:331)
 at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
 ... 1 more

As you can see in above stack trace NoClassDefFoundError is caused by ClassNotFoundException, because JVM is not able to find the Employee class in the class path.

Conclusion

You can find complete code on this Github Repository and please feel free to provide your valuable feedback.
